SPD 4P AC Solar Full Protection — Kya Hai Aur Kahan Lagta Hai?

Kya aap ne apne ghar, factory ya baray karobar ke liye 3-phase solar system lagaya hai lekin badalon ki garaj aur barish mein inverter ke jalne ka dar rehta hai? SPD 4P AC Solar Full Protection darasall aap ke qeemti 3-phase inverter ki AC side ka sab se bada muhafiz hai. Yeh safety switch aap ke main distribution box (DB Box) ke andar lagaya jata hai jahan pichay se teenon phases aur neutral ki wires connect hoti hain. Is ka main kaam yeh hota hai ke jab aasmani bijli chamakti hai ya main transformer se achanak hazaron volts ka surge aata hai, to yeh us jhatkay ko inverter ke andar janay se pehle hi zameen (earth) mein baha deta hai.

Table of Contents (SPD 4P AC Solar Full Protection — 3-Phase Safety | Gujranwala | PakElectricCo):

• SPD 4P AC Solar Full Protection — Kya Hai Aur Kahan Lagta Hai?

• Kyun Lena Chahiye Yeh SPD 4P AC Solar Full Protection? — Asli Fayde

• Technical Specs — Jo Jaanna Zaroori Hai

• Kiske Liye Best Hai Yeh Product?

• Installation — Kaise Lagate Hain? (Short Guide)

• Aksar Pooche Jane Wale Sawal

• Delivery Aur Returns

Gujranwala mein jo log 10kW, 15kW ya is se baray commercial setups lagate hain, wo aksar breakers to heavy laga lete hain lekin 4-pole AC SPD lagana bhool jate hain. Yeh aik aisi galti hai jo aap ko lakhon ka nuksan pohncha sakti hai. Barishon ke mausam mein jab hamare local ilaqon mein tez toofan aate hain, to aam breakers voltage jhatkay ki high speed ko nahi pakad paate. Agar system mein proper SPD 4P AC Solar Full Protection switch na laga ho, to high voltage ka jhatka micro-seconds mein inverter ke qeemti motherboard ko ura deta hai aur poora system band ho jata hai.

PakElectricCo par hamara maqsad aap ko sirf sauda bechna nahi hai, balkay aap ke karobar aur lakhon ki investment ko mehfooz rakh kar aap se dua lena hai. Yeh heavy-duty protector aap ke system ko 5+ saal tak achanak aane wale har electrical jhatkay se pakki safety deta hai taake aap har mausam mein bilkul be-fikr rahein.

Kyun Lena Chahiye Yeh SPD 4P AC Solar Full Protection? — Asli Fayde

Sab se bada faida is ka yeh hai ke yeh nano-seconds mein action leta hai. 3-phase system mein agar aik phase par bhi jhatka aaye to baqi do phases aur inverter ka poora circuit damage ho sakta hai. Is device ka 4-pole design teenon phases aur neutral line ko aik sath protect karta hai, jis se hifazat ka ghera 100% mazboot ho jata hai. Saste alternative aksar single line ko protect karte hain aur poora system damage ho jata hai.

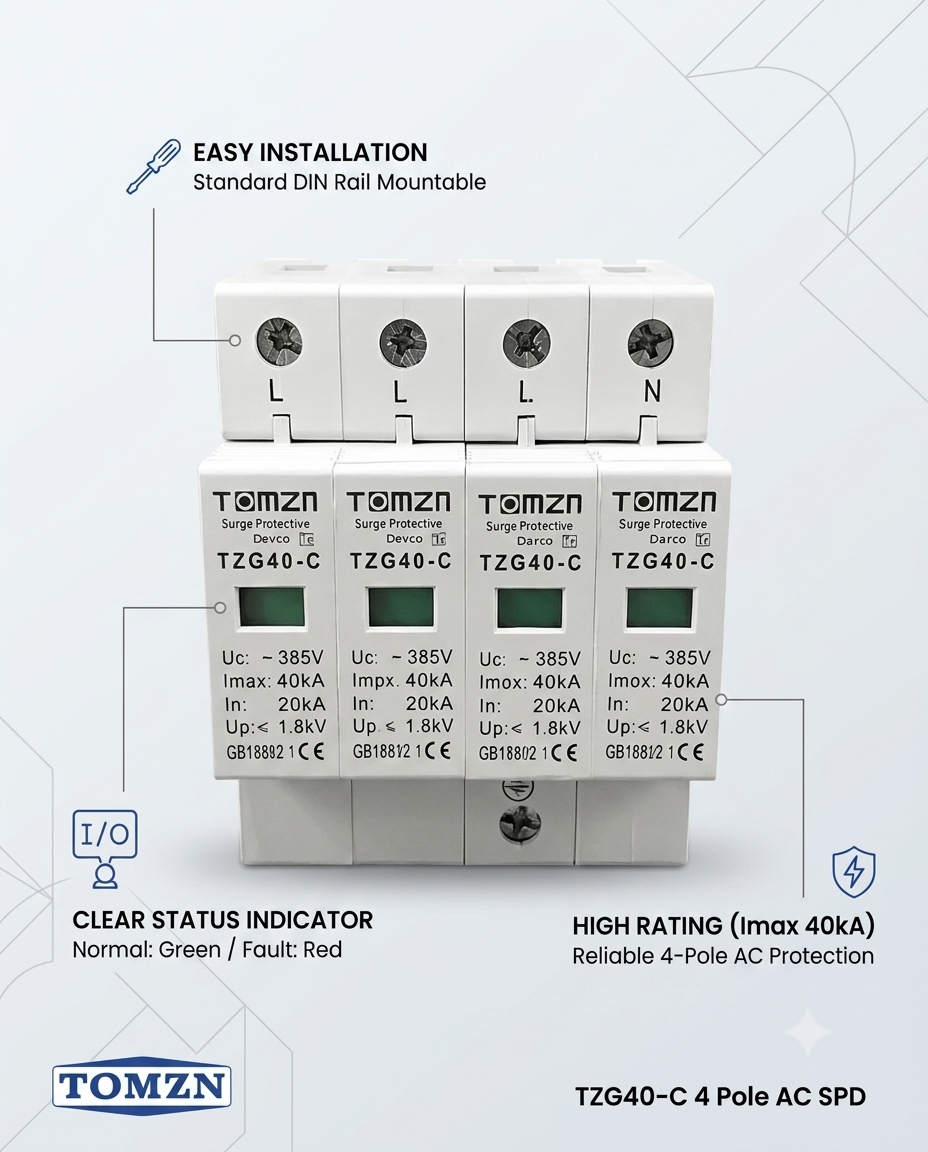

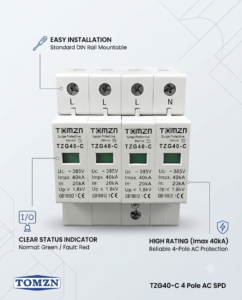

Doosra faida is ka easy diagnostic indicator hai. Is ke har pole par aik green color ki window hoti hai. Jab tak yeh green hai, aap ka system bilkul safe hai. Agar kabhi bohot heavy voltage surge ya aasmani bijli is par gire gi, to yeh khud ko qurban kar ke red ho jayegi lekin aap ke qeemti inverter ko aanch bhi nahi aane degi. Red hone par aap bas is ka module tabdeel kar sakte hain jo ke bohot sasta parta hai.

Is ke ilawa, is ke internal contacts high-grade copper aur zinc oxide se bane hain jo high temperature mein bhi perform karte hain. Gujranwala ki shadeed garmiyo mein jab factory ya ghar ka load lagatar chalta hai aur wire garm hoti hain, to yeh device de-shape nahi hoti. Saste local switches aksar load ke doran khudi naram ho kar fail ho jate hain.

Technical Specs — Jo Jaanna Zaroori Hai

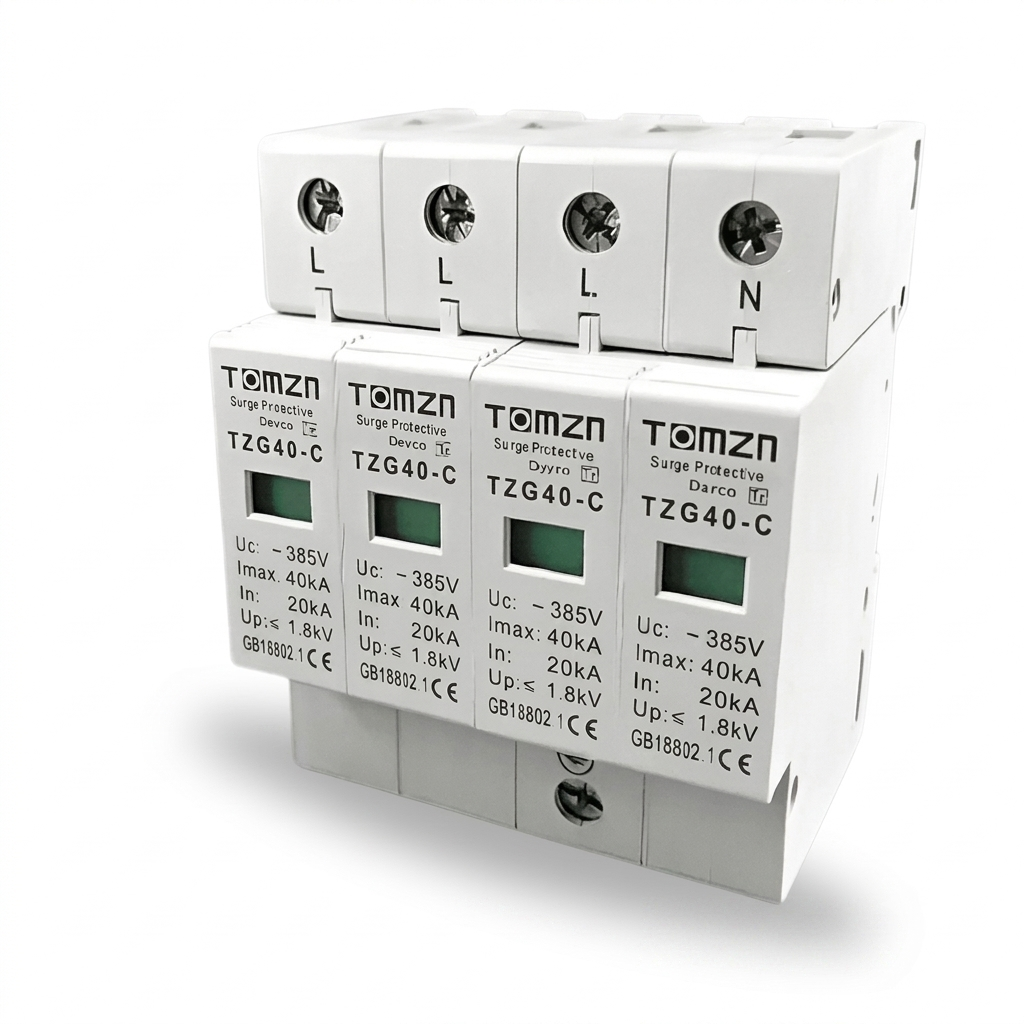

• Pole Configuration (4-Pole): Three Phases (L1, L2, L3) aur Neutral (N) ki mukammal safety ke liye best hai.

• Max Discharge Current (Imax): 40kA tak ke heavy lightning surge ko handle karne ki salahiyat rakhta hai.

• Voltage Protection Level (Up): Nihayat kam taake high voltage jhatka inverter ke sensitive parts tak na pohnch sakay.

• Response Time: <25 nano-seconds mein short circuit aur high current ko earth ki taraf bypass karta hai.

• Material Type: Fire-retardant industrial grade outer shell jo aag ko agay barhne se rokti hai.

Kiske Liye Best Hai Yeh Product?

Yeh protector har us shakhs ke liye Guaranteed zaroori hai jo 3-phase meter par solar system chala raha hai. Agar aap ka setup ghar par hai, kisi kapray ki factory mein hai, ya kisi school aur college mein laga hai, to yeh hifazat ka switch laazmi lagayein. Khaas tor par agar aap Gujranwala ke local ilaqon, dukanon ya industrial areas mein hain, to hamare local grid ke jhatkon se bachne ke liye yeh sab se zaroori cheez hai. Local installers ke liye bhi yeh behtareen choice hai taake un ke lagaye huay DB box ki quality par koi ungli na utha sakay.

Installation — Kaise Lagate Hain? (Short Guide)

1. Safety Warning: Installation shuru karne se pehle main WAPDA switch aur solar inverter ki AC output supply ko mukammal band karein.

2. SPD ko hamesha 3-phase line ke parallel (sath) mein lagaya jata hai.

3. Pichay se aane wali teenon Phase wires ko L1, L2, aur L3 terminals mein connect karein.

4. Neutral wire ka connection (N) wale terminal mein achi tarah tight karein.

5. Sab se zaroori baat: Is ke bottom par diye gaye Grounding (Earth) terminal se aik heavy copper wire nikal kar apne ghar ya factory ke main earth bor ke sath laazmi connect karein. Bina earth connection ke yeh switch be-faida hai.

6. Check karein ke koi bhi wire loose na ho taake load par heat paida na ho.

7. Agar installation mein koi mushkil pesh aaye, to hamare WhatsApp number 03486075964 par rabta kar ke free rehnumai le sakte hain.

Aksar Pooche Jane Wale Sawal

Q1: Kya yeh SPD 4P AC Solar Full Protection single phase inverter par lag sakti hai?

A: Yeh mukhlasana mashwara hai ke single phase ke liye aap hamari 2-pole SPD use karein kyunke yeh khaas tor par 3-phase setups ke liye design ki gayi hai jahan teen phases hote hain.

Q2: Agar mere paas proper grounding bor na ho to kya yeh aasmani bijli se bachaye gi?

A: Ji nahi, aisi galti kabhi na karein. SPD ka poora mechanism surge ko zameen mein behane par chalta hai. Agar earth wire nahi hogi to high voltage pichay hi ruk jaye ga aur inverter jal sakta hai.

Q3: PakElectricCo se Gujranwala mein delivery kitne time mein milegi?

A: Hamari shop Gondalawala Adda Gujranwala par hai. Agar aap Gujranwala city se order karte hain to hamare rider ke zariye same-day cash on delivery mil jayegi, aap ka waqt aur chakkar dono bachenge.

Q4: Jab yeh device red ho jati hai to kya poori device badalni parti hai?

A: Ji nahi, is ka faida hi yeh hai ke is ke oopar wale modules detachable hote hain. Aap ko poora base badalna nahi parta, sirf red wala module saste mein change ho jata hai.

Q5: Kya yeh original product hai ya copy?

A: PakElectricCo par hum sirf original aur tested safety equipment hi rakhte hain. Hum do-number maal nahi bechte kyunke hamare liye customer ka qeemti system aur un ki dua sab se pehle hai.

Delivery Aur Returns

Kyunke hum abhi naye jazbay se shuru kar rahe hain, is liye hamara poora focus hamare pyare shehar Gujranwala par hai. Gujranwala city ke andar aap ko same-day fast rider delivery mil jayegi aur aap Cash on Delivery par maal received kar sakte hain. Agar product mein koi genuine issue ho to hamari 7-din ki return policy mojood hai. Mazeed kisi bhi sawal ya technical information ke liye hamare WhatsApp number 03486075964 par message karein, hum aap ki madad ke liye haazir hain.
